Description

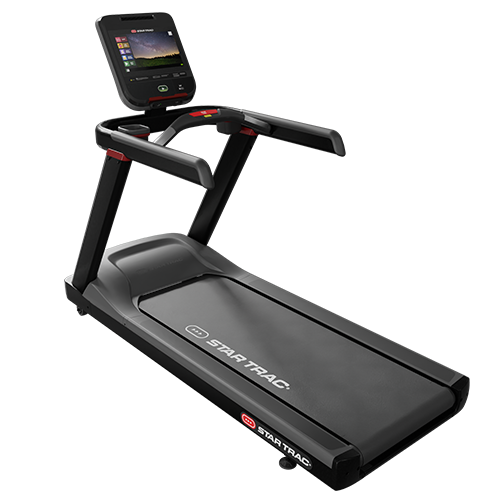

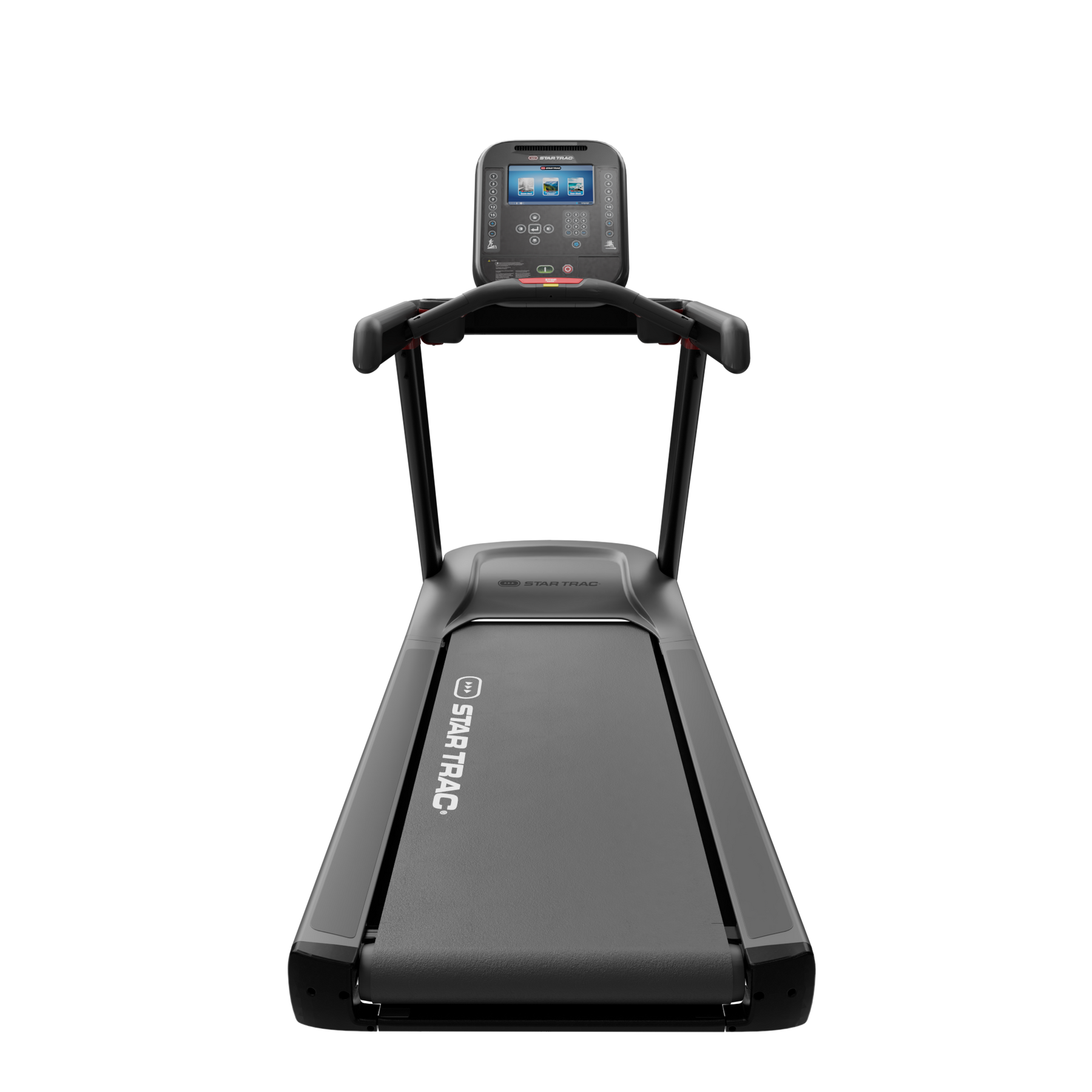

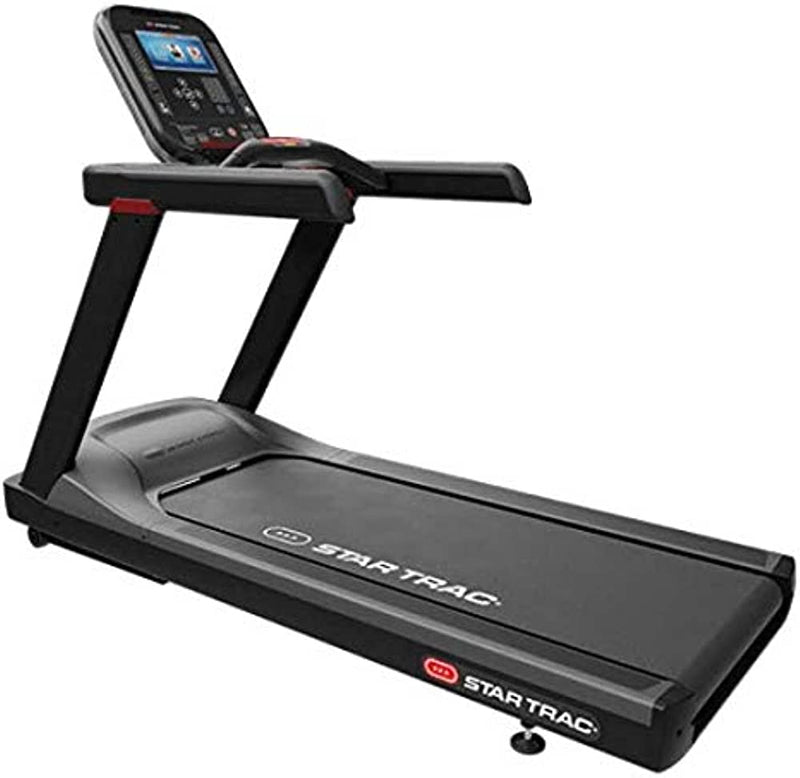

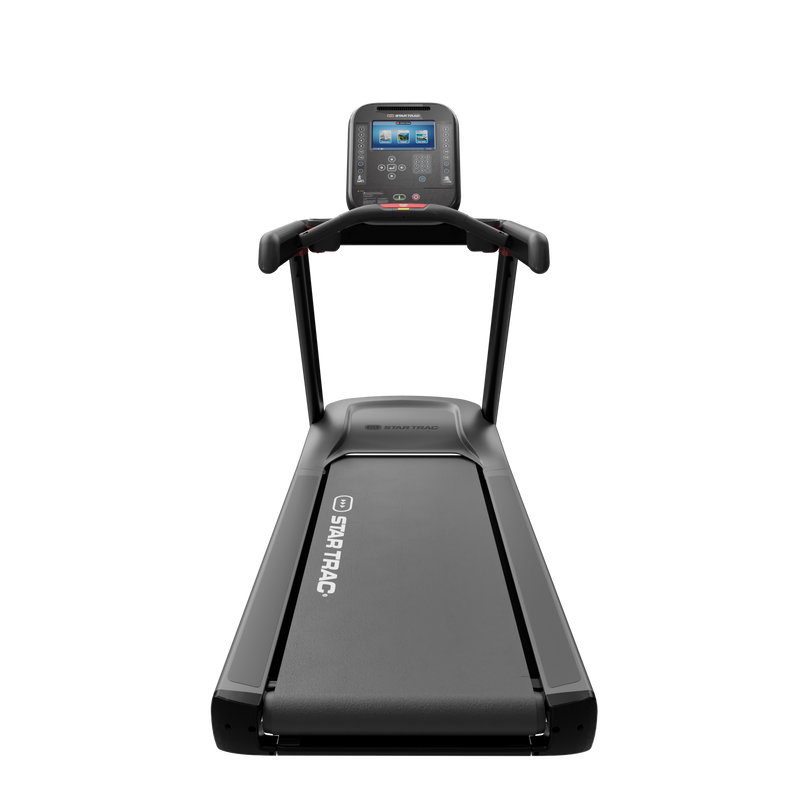

The 4TR Treadmill is a high-quality fitness machine designed for smaller facilities. It features a 22" wide belt and a 7" step-up height, making it comfortable and accessible for a wide range of users. The treadmill is powered by a 3 HP DC motor and has a speed range of 0.5-12.5mph (0.5-20 kmh) and an incline range of 0-15%.
The 4TR Treadmill is available with three console options: the 4 Series 15" Embedded, 10" Touchscreen, and 10" LCD versions of the new OpenHub family of consoles. Each console features quick key selects for speed and incline, allowing for one-touch changes on the fly. The treadmill also has a warm bar that provides contact HR and a stop button within easy reach of the user, as well as an integrated USB port for charging user devices.
Other features of the 4TR Treadmill include compatibility with 8 Series PVS entertainment screens, contact and telemetry heart rate monitoring, multiple holders for water bottles and user devices, and Star Trac's popular personal fan for comfort. The treadmill has electrical requirements of either a 110V/15 Amp standard outlet or a 220V/15 Amp outlet and a powder-coated steel frame for durability. With premium full-color flat panel displays, quick select adjustment keys, and an optional personal viewing screen, the 4TR provides smaller facilities with the look and performance of a full commercial product.

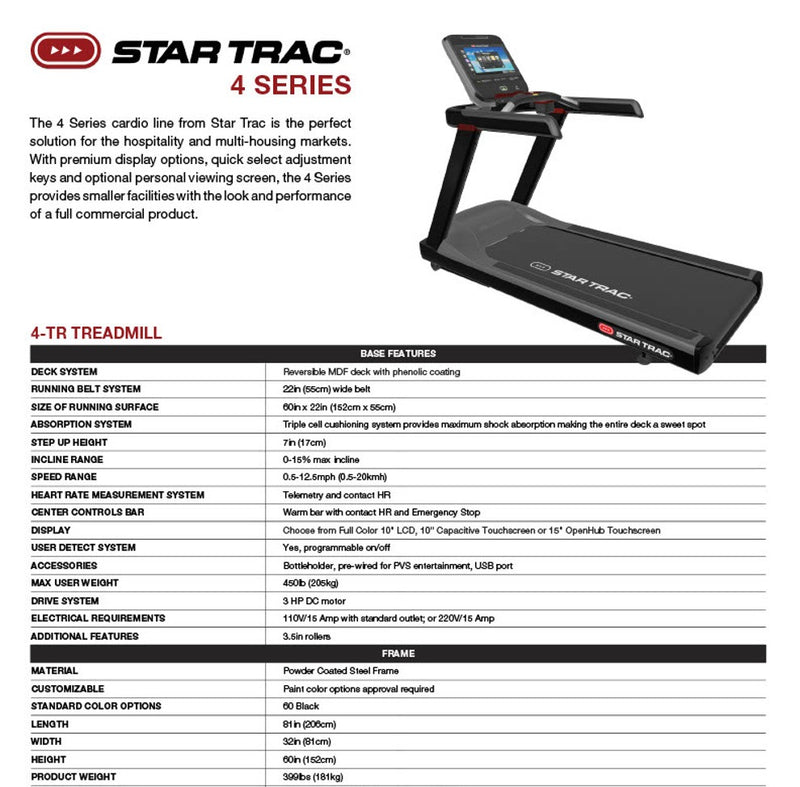

Specifications
BASE FEATURES |
|
DECK SYSTEM |
Reversible MDF deck with phenolic coating |
RUNNING BELT SYSTEM |
22in (55cm) wide belt |
SIZE OF RUNNING SURFACE |
60in x 22in (152cm x 55cm) |
ABSORPTION SYSTEM |
Triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot |
STEP UP HEIGHT |
7in (17cm) |
INCLINE RANGE |
0-15% max incline |
SPEED RANGE |
0.5-12.5mph (0.5-20 kmh) |
HEART RATE MEASUREMENT SYSTEM |
Telemetry and contact HR |
CENTER CONTROLS BAR |
Warm bar with contact HR and Emergency Stop |
DISPLAY |
Choose from Full Color 10" LCD, 10" Capacitive Touchscreen, or 15" OpenHub Touchscreen |
USER DETECT SYSTEM |
Yes, programmable on/off |
ACCESSORIES |
Bottleholder, pre-wired for PVS entertainment, USB port |
MAX USER WEIGHT |
450lb (205kg) |
DRIVE SYSTEM |
3 HP DC motor |
ELECTRICAL REQUIREMENTS |
110V/15 Amp with standard outlet; or 220V/15 Amp |
ADDITIONAL FEATURES |
3.5in rollers |
FRAME |
|
MATERIAL |
Powder Coated Steel Frame |
CUSTOMIZABLE |
Paint color options approval required |
STANDARD COLOR OPTIONS |
60 Black |
LENGTH |
81in (206cm) |
WIDTH |
32in (81cm) |
HEIGHT |
60in (152cm) |
PRODUCT WEIGHT |
399lbs (181kg) |
